Adding survey templates is one of the tasks in configuring Workflow Automation. Admins with access to Workflow Automation can add and map survey templates. A survey template provides the format for the survey that a user or approver must complete when responding to an incident notification from Workflow Automation. The survey includes questions that, when answered, provide the justification for the incident.

When an admin configures a notification template, they can choose to format a link in the notification template that enables the user or approver to view the incident details and the survey template where they can enter the response to the notification. Then, when a user or approver receives a notification that is using that notification template, they can click that link, which opens the Incidents page and the survey that they must complete for the incident. The template settings on the Template Mappings page determine the notification template and the survey templates that Workflow Automation uses for the different source Data Loss Prevention (DLP) types and notification types. To learn more, see Managing Incident and Digest Template Mappings.

Workflow Automation provides the following system default survey template families:

• End-user Justification - Questionnaire Template
• Escalation - Questionnaire Template

For each template family, you can create only one template in each language. You cannot create two templates of the same language for a single template family.

Admins cannot edit the default survey templates. They can only view and clone the system default survey templates.

On the Survey Templates page in the Workflow Automation Admin Portal, admins can:

• View Survey Templates

  To view existing survey templates:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.
  2. (Optional) Filter the templates by status, type, template family, or language. You can also search for specific templates that you want to view.
  3. (Optional) Reset all the applied filters.

  4. View a list of survey templates configured for your organization. For each survey template, you can see the following:

     • Template Name: The name of the template.
     • Template Family: The family of the template.
     • Type: The type of template. The type of template is always Questionnaire.
     • Language: The language of the template.
     • Last Modified: The date and time the template was last modified.
     • Status: The status of the template. Statuses are Draft, Published, and System Default.

     See image.



     Close

  Close
• Add Survey Templates

  To add a survey template:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.

  2. On the Survey Templates page, click Add More. The Survey Template page appears.

     See image.



     Close

  3. On the Survey Template page:

     • Template Name: Enter a name for the template.
     • Template Family: From the drop-down menu, select a family for the template or add a new template family.
     • Type: From the drop-down menu, select Questionnaire.
     • Source Language: From the drop-down menu, select the language for the template.

     After you select the template type, the survey creator section appears below the row. The survey creator section contains a Designer tab and a Preview tab. Workflow Automation uses the Survey Creator component from SurveyJS. Using this drag-and-drop survey builder, you can create a survey template, change the content, include pictures, and link to files. In addition, you can change the template's structure and style.

     See image.



     Close

  4. Click the Designer tab.
  5. In the Designer tab of the survey creator, configure the survey template using one or more of the question and panel types in the toolbox:
     • Single Input: Adds a single-line text editor to the template design. Use this type for open-ended questions that require short answers.
     • Checkbox: Adds a checkbox to the template design. Use this type for questions that accept multiple answers.
     • Radiogroup: Adds a radiogroup to the template design. Use this type for questions that can have multiple options but accept only one answer.
     • Dropdown: Adds a drop-down menu to the template design. Use this type for questions that can have multiple options but accept only one answer. With this type, you can display more options while occupying less screen space.
     • Comment: Adds a resizeable multiline text area to the design. Use this type for open-ended questions that accept multiline answers.
     • Rating: Adds a rating selection to the design. Use this type if you want respondents to enter a rating.
     • Ranking: Adds a ranking list to the design. Use this type for questions in which respondents must set the order of items.
     • Image Picker: Adds an image picker to the design. Use this type to have respondents select one or several images or videos from a series.
     • Boolean: Adds a Boolean editor to the design. Use this type to have respondents switch the Boolean editor to Yes or No.
     • Image: Adds an image or video to the design. This type is used for presentation only.
     • HTML: Adds HTML to the design. Use this type to format text as needed, include links, and insert media or other custom elements. This type is used for presentation only.
     • Signature Pad: Adds a signature area to the design. Use this type to obtain the respondent's signature or any hand-drawn input.
     • Expression: Adds an expression to the design. Use this type to calculate values and present them to respondents.
     • File: Adds a file upload area to the design. Use this type to allow respondents to upload files.
     • Single-Choice Matrix: Adds a single-choice matrix to the design. Use this type to display radio buttons in rows and columns. Respondents can select only one radio button in each row.
     • Multiple-Choice Matrix: Adds a multiple-choice matrix to the design. Use this type to display rows and columns. At their intersections, the matrix can display the following editors:
       • Dropdown
       • Checkbox
       • Radiogroup
       • Single Input
       • Comment
       • Boolean
       • Expression

       • Ratings

         Respondents use these editors to select a desired value in each cell.

     • Dynamic Matrix: Adds a dynamic matrix to the design. This type is similar to the Multiple-Choice Matrix, but respondents can add and remove matrix rows.
     • Multiple Text: Adds multiple single-line text editors to the design. Use this type for open-ended questions that require more than one short answer.
     • Panel: Adds a panel container for other questions and panels to the design. Use this type to group several questions or panels and control them all together.
     • Dynamic Panel: Adds a dynamic panel that can contain multiple questions. Respondents can add and remove panels based on the template.
  6. (Optional) Click Save as Draft. The template is saved with the status as Draft. You can come back later and continue to work on the template design.
  7. (Optional) Click Translate to translate the newly created template to a different language. The Translate window appears.
     1. In the Translate window, from the Translate To drop-down menu, select a language to which you want to translate the template.
     2. Click Preview to view the translated template. The template displays in the selected language.
     3. (Optional) To revert the template to the original language and also to revert any changes made after translation, click Reset.
  8. Click Publish Template. The template is published, and the status is Published. Workflow Automation only uses published templates for its surveys.

  Close
• Preview Survey Templates

  To preview a survey template:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.

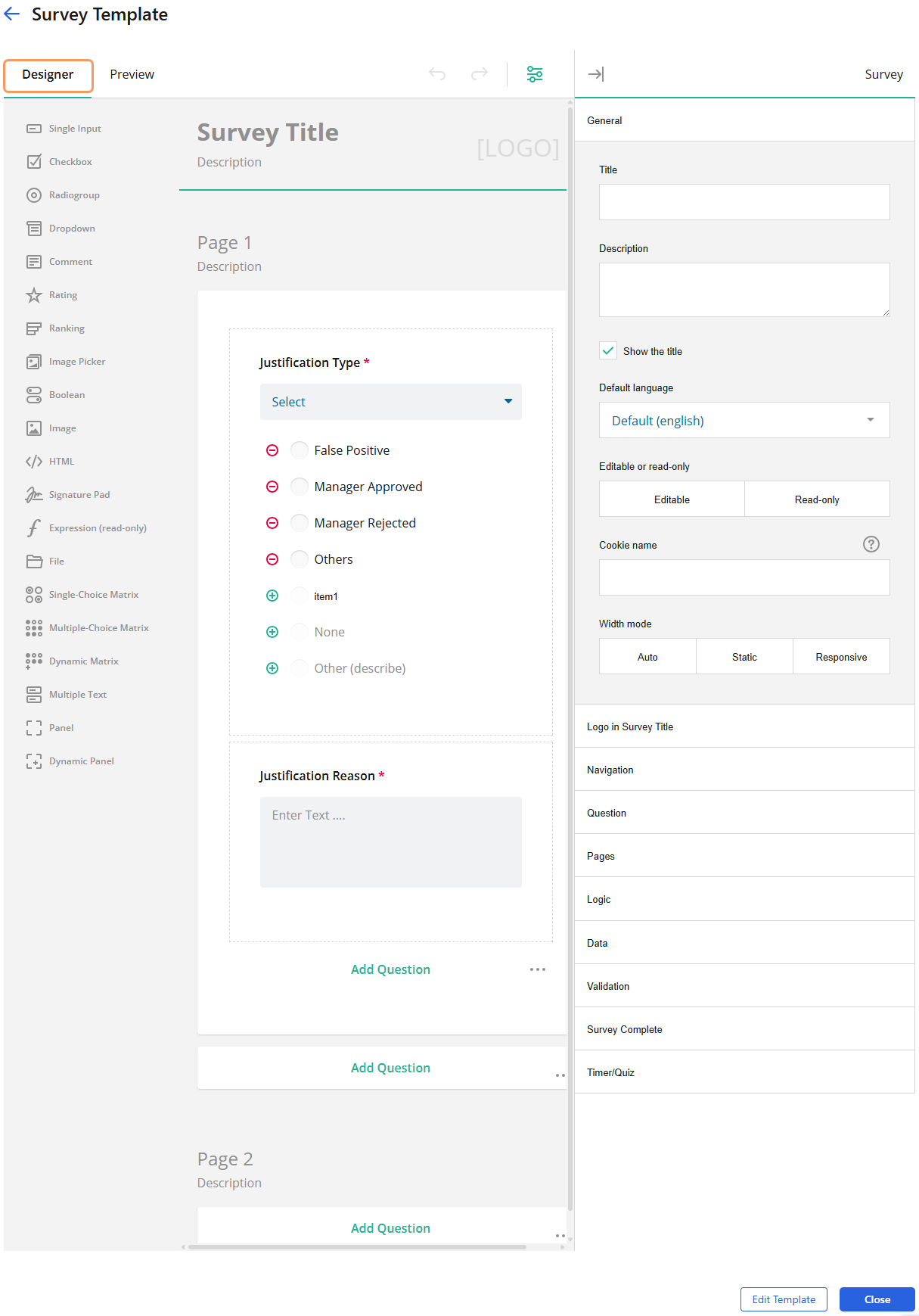

  2. In the Action column next to an existing template, click the View Template icon. The Survey Template page appears, displaying the survey template in the Designer tab.

     See image.



     Close

  3. On the Survey Template page, click the Preview tab to view the survey template in its rendered format.

  4. (Optional) Click Edit Template. You are redirected to the Designer tab of the Survey Template page where you can modify and publish the survey template.

     See image.



     Close

  5. Click Close.

  Close
• Edit Survey Templates

  To edit a survey template:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.

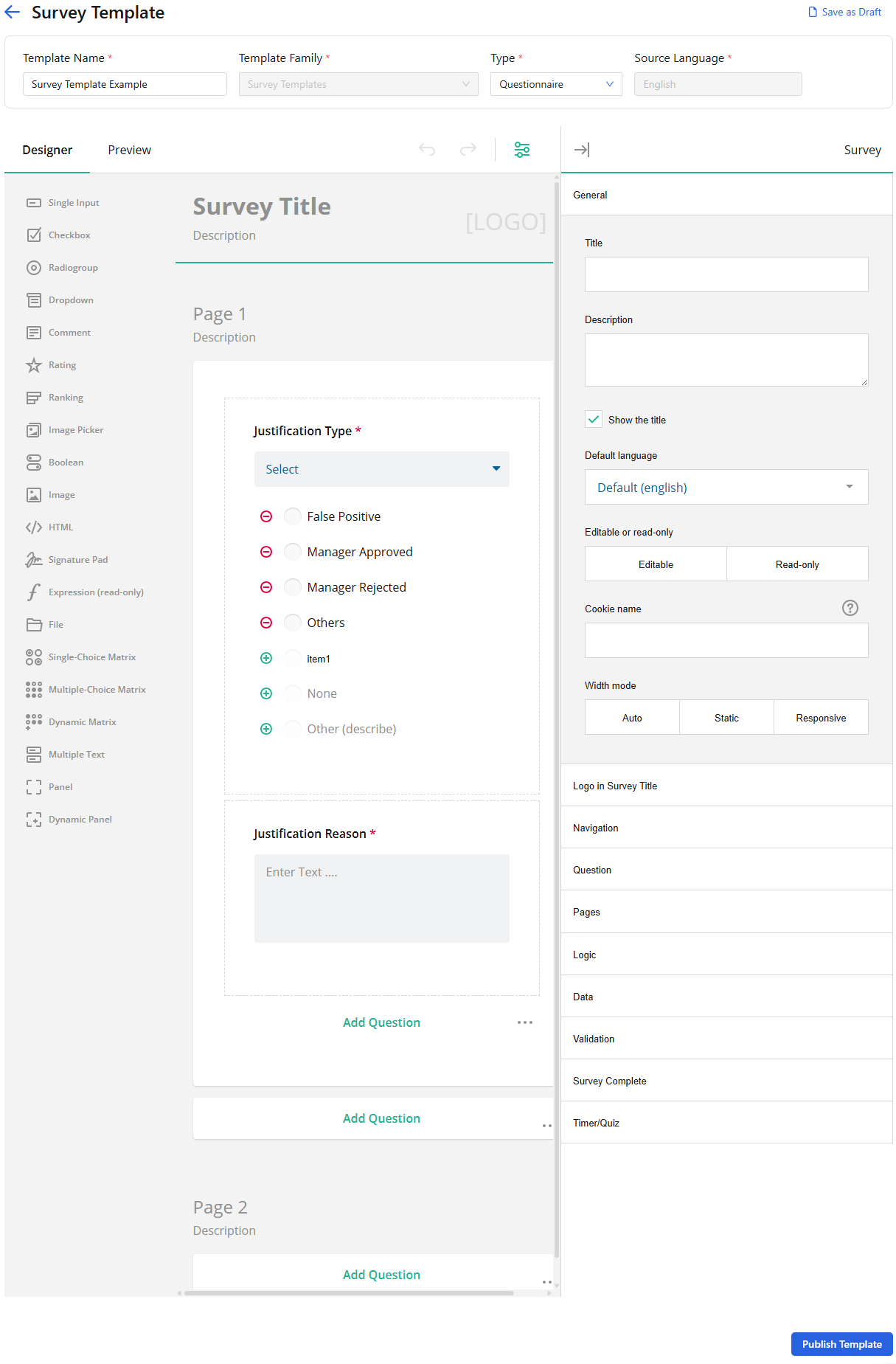

  2. In the Action column next to an existing published or draft template, click the Edit Template icon. You cannot edit a system default template. The Survey Template page appears, displaying the survey template under the Designer tab.

     See image.



     Close

  3. Edit the survey template details or the survey template design using one or more of the question and panel types in the toolbox.
  4. (Optional) Click Save as Draft. You can come back later and continue to work on the template design.
  5. Click Publish Template. The template is published. Workflow Automation only uses published templates for its surveys.

  To delete a survey template, in the Action column next to an existing template, click the Delete Template icon. You cannot delete a system default template.

  Close
• Translate Survey Templates

  To translate a survey template into a different language:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.

  2. In the Action column next to a published, system default, or draft template, click the Translate Template icon. The Survey Template page appears, with the Translate window.

     See image.



     Close
     1. In the Translate window, from the Translate To drop-down menu, select a language to which you want to translate the template.

     2. To view the translated template, click Preview. The template displays in the selected language.

        See image.



        Close

     3. (Optional) To revert the template to the original language and also to revert any changes made after translation, click Reset.
  3. (Optional) Click Save as Draft. You can come back later and continue to work on the template.
  4. Click Publish Template. The template is published. Workflow Automation only uses published templates for its surveys.

  Close
• Clone Survey Templates

  To clone a survey template:

  1. Go to Setup > Survey Templates. The Survey Templates page appears.

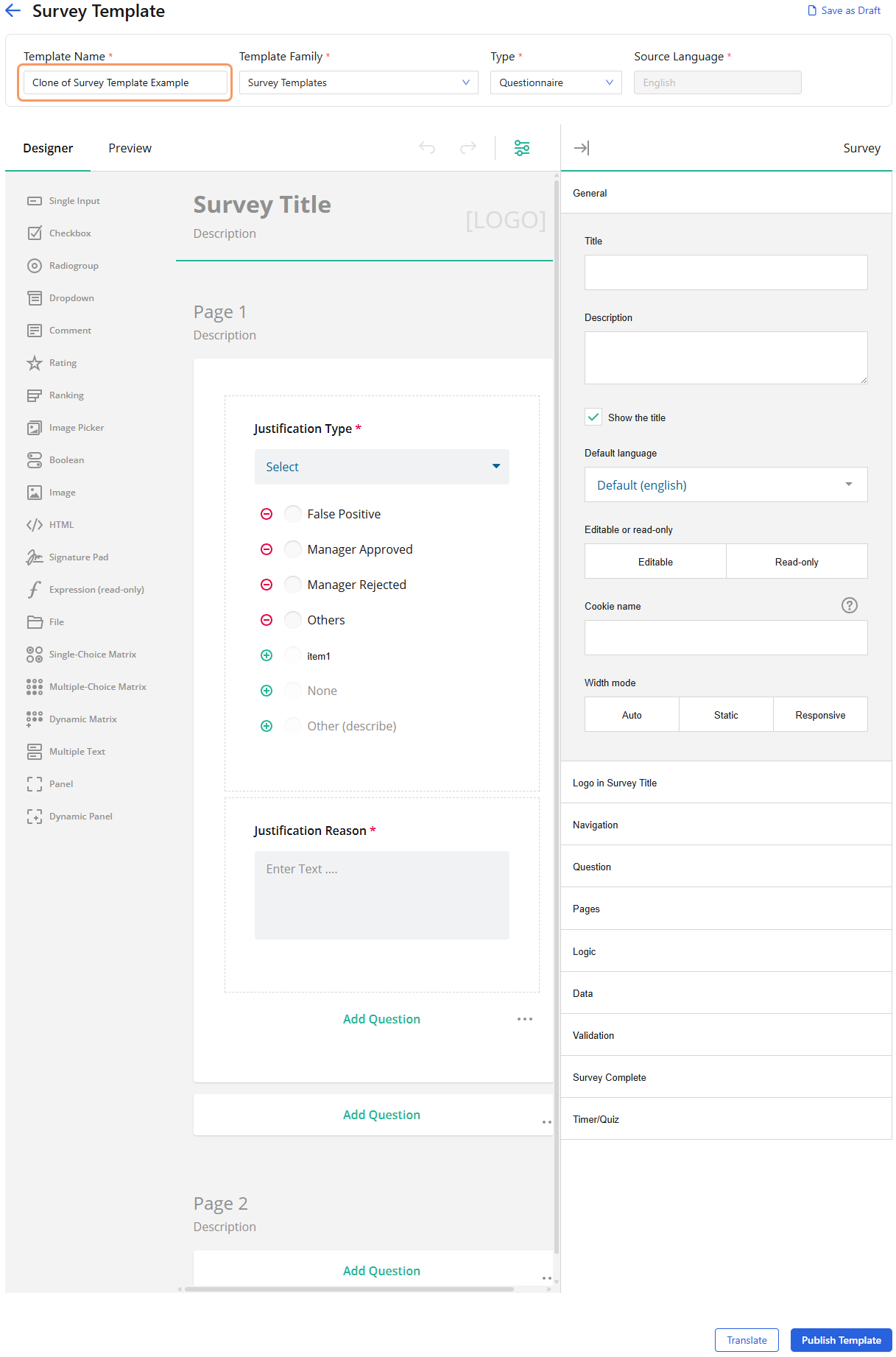

  2. In the Action column next to a draft, published, or system default template, click the Clone Template icon. The Survey Template page appears. In the Template Name field, "Clone of" appears in front of the name of the survey template that you cloned.

     See image.



     Close

  3. (Optional) In the Template Name field, change the template name.
  4. Edit the template details or the survey template design using one or more of the question and panel types in the toolbox.

  5. (Optional) Click Save as Draft. You can come back later and continue to work on the template design.

     See image.



     Close

  6. (Optional) Click Translate to translate the newly created template to a different language. The Translate window appears.
     1. In the Translate window, from the Translate To drop-down menu, select a language to which you want to translate the template.
     2. Click Preview to view the translated template. The template displays in the selected language.
     3. (Optional) To revert the template to the original language and also to revert any changes made after translation, click Reset.
  7. Click Publish Template. The template is published. Workflow Automation only uses published templates for its surveys.

  You can only update the template mappings with templates that are in a published status. You also receive notifications from Workflow Automation to update the template mappings to use this template.
